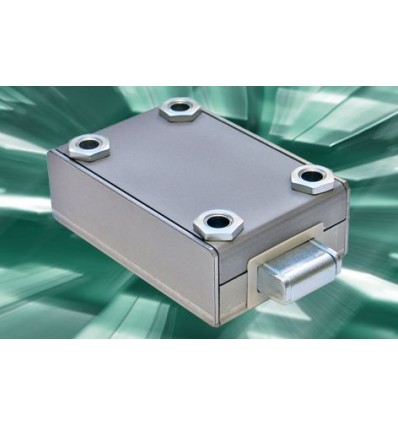

Primor 3000

• EN 1300 B VdS Class 2
• Locking and opening by motor-driven bolt movement
• Spring-loaded bolt jumps into locking position when boltwork is being closed. Crush load protection by spring-loaded bolt, hence no boltwork position switch is needed.
• The electronic lock is completed by a key lock. Therefore an opening is possible in case of an emergency
• Suited for input units - Primor RO, Primor FL, Primor FS
• Lock case/bolt　: galvanised steel
• Lock - mounting position　: right-hand/left-hand/up/down
• Fixing points　: standard
• Bolt/bolt movement　 square bolt, spring-loaded/motor-driven
• Bolt force (N)　: 1
• Bolt stroke (mm) : 12
• Power supply　: 1 x 9 V block battery

Options & accessories

• Input units　: Primor RO/FL/FS
• Spring-loaded square bolt with threaded holes　: 2 x M4
• Latch bolt (no certification)　
• Extension box PrimorSignal　
• Audit-set　software, 1 iButton, iButton reader, USB-adapter, y-adapter
